Anel de retenção para eixos

 Grupo : 534

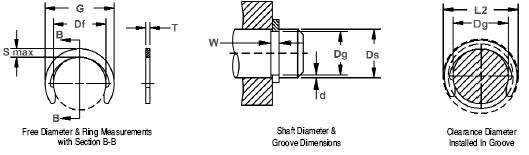

SHAFT DIAMETER RING DIMENSIONS GROOVE DIMENSIONS APPLICATION DATA SUPPLEMENTARY APPLICATION DATA
CLEARANCE ALLOW THRUST
DIAMETER LOAD (lbs.)
Código Reno para encomenda Dec. Equiv. Inch Approx. Fract. Equiv. Inch Approx. mm FREE DIAMETER THICKNESS LARGE SECTION Approx. Weight per 1.000 pieces DIAMETER WIDTH Nominal groove depth Free outside diameter (REF.) When sprung into groove "G" Rings Safety factor = 4 Grooves Safety factor = 2 Maximum allowable corner radii and chamfers of retained parts Allow assembly load with Rmax. or Chmax. Edge margin Calculated RPM limits
S S S D tol. t E lbs. G Tol. W d Y C2 Pr Pg Rmax. Chmax. P´r(lbs.) Z
00.534.032 0.125 1/8 3.2 0.102 +0.002 -0.004 0.015 0.031 0.030 0.106 ±0.0015 0.0015 0.020 0.0095 0.165 0.18 85 45 0.014 0.011 85 0.020 80000
00.534.040 0.156 5/32 4.0 0.131 +0.002 -0.004 0.015 0.037 0.052 0.135 ±0.0015 0.0015 0.020 0.0105 0.205 0.22 100 55 0.018 0.014 100 0.020 75000
00.534.048 0.188 3/16 4.8 0.161 +0.002 -0.004 0.015 0.042 0.062 0.165 ±0.0015 0.0015 0.020 0.011 0.244 0.25 130 70 0.021 0.016 110 0.022 73000
00.534.056 0.219 7/32 5.6 0.187 +0.003 -0.005 0.025 0.044 0.120 0.193 ±0.002  0.0015 0.029 0.013 0.275 0.29 260 100 0.021 0.016 260 0.026 71000
00.534.060 0.236 15/64 6.0 0.203 +0.003 -0.005 0.025 0.046 0.15 0.208 ±0.002 0.002 0.029 0.014 0.295 0.31 280 115 0.022 0.017 275 0.028 62000
00.534.064 0.250 1/4 6.4 0.211 +0.003 -0.005 0.025 0.050 0.157 0.220 ±0.002 0.002 0.029 0.015 0.311 0.33 290 130 0.023 0.018 290 0.030 60000
00.534.071 0.281 9/32 7.1 0.242 +0.003 -0.005 0.025 0.051 0.19 0.247 ±0.002 0.002 0.029 0.017 0.346 0.36 330 165 0.021 0.016 310 0.034 56000
00.534.079 0.312 5/16 7.9 0.270 +0.003 -0.005 0.025 0.053 0.226 0.276 ±0.002 0.002 0.029 0.018 0.376 0.39 370 200 0.024 0.018 310 0.036 52000
00.534.095 0.375 3/8 9.5 0.328 +0.003 -0.005 0.025 0.060 0.300 0.335 ±0.002 0.002 0.029 0.020 0.448 0.47 440 270 0.026 0.020 310 0.040 43000
00.534.103 0.406 13/32 10.3 0.359 +0.003 -0.005 0.025 0.063 0.352 0.364 ±0.002 0.002 0.029 0.021 0.486 0.50 480 300 0.027 0.021 310 0.042 40000
00.534.111 0.438 7/16 11.1 0.386 +0.003 -0.005 0.025 0.065 0.359 0.393 ±0.002 0.002 0.029 0.022 0.517 0.53 520 350 0.029 0.022 310 0.044 31000
00.534.127 0.500 1/2 12.7 0.441 ±0.006 0.035 0.070 0.671 0.450 ±0.003 0.004 0.039 0.025 0.581 0.60 830 450 0.030 0.023 610 0.050 25000
00.534.143 0.562 9/16 14.3 0.497 ±0.006 0.035 0.078 0.710 0.507 ±0.003 0.004 0.039 0.028 0.653 0.67 930 550 0.033 0.025 610 0.056 22000
00.534.159 0.625 5/8 15.9 0.553 ±0.006 0.035 0.081 0.937 0.563 ±0.003 0.004 0.039 0.031 0.715 0.74 1030 700 0.033 0.025 610 0.062 20000
00.534.175 0.688 11/16 17.5 0.608 ±0.007 0.042 0.086 1.3 0.619 ±0.003 0.004 0.046 0.034 0.784 0.80 1700 800 0.034 0.026 880 0.068 18500
00.534.190 0.750 3/4 19.0 0.665 ±0.007 0.042 0.090 1.5 0.676 ±0.003 0.004 0.046 0.037 0.845 0.87 1850 1000 0.036 0.027 880 0.074 17500
00.534.206 0.812 13/16 20.6 0.721 ±0.007 0.042 0.097 1.7 0.732 ±0.003 0.004 0.046 0.040 0.915 0.94 2010 1150 0.038 0.029 880 0.080 16000
00.534.222 0.875 7/8 22.2 0.777 ±0.007 0.042 0.105 2.0 0.789 ±0.003 0.004 0.046 0.043 0.991 1.01 2170 1300 0.040 0.031 880 0.086 15000
00.534.238 0.938 15/16 23.8 0.830 ±0.007 0.042 0.112 2.3 0.843 ±0.003 0.004 0.046 0.047 1.058 1.08 2320 1550 0.043 0.033 880 0.094 14000
00.534.254 1.000 1 25.4 0.887 ±0.007 0.042 0.120 2.7 0.900 ±0.003 0.004 0.046 0.050 1.130 1.15 2480 1800 0.046 0.035 880 0.100 12500
00.534.286 1.125 1 1/8 28.6 0.997 ±0.008 0.050 0.135 4.0 1.013 ±0.004 0.005 0.056 0.056 1.267 1.30 3320 2200 0.052 0.040 1250 0.112 11500
00.534.317 1.250 1 1/4 31.7 1.110 ±0.008 0.050 0.150 5.1 1.126 ±0.004 0.005 0.056 0.062 1.415 1.44 3680 2700 0.057 0.044 1250 0.124 10500
00.534.349 1.375 1 3/8 34.9 1.220 ±0.008 0.050 0.165 6.1 1.237 ±0.004 0.005 0.056 0.069 1.555 1.58 4050 3350 0.062 0.048 1250 0.138 9500
00.534.381 1.500 1 1/2 38.1 1.331 ±0.008 0.050 0.180 7.6 1.350 ±0.004 0.005 0.056 0.075 1.691 1.72 4420 4000 0.069 0.053 1250 0.150 8500
00.534.444 1.750 1 3/4 44.4 1.555 ±0.010 0.062 0.210 12.9 1.576 ±0.005 0.005 0.068 0.087 1.975 2.01 6430 5300 0.081 0.062 1920 0.174 7500
00.534.508 2.000 2 50.8 1.777 ±0.010 0.062 0.240 16.2 1.800 ±0.005 0.005 0.068 0.100 2.257 2.30 7300 7000 0.091 0.070 1920 0.200 6000
